JoAnn's Concubine Temple

This is the Class board for the Curvemeister 101 class.
joann
Posts: 184
Joined: Sat Nov 22, 2008 11:19 pm

Postby joann » Mon Nov 09, 2009 5:58 pm

Again, I pretty much followed instructions. I did make it brighter with the Lightness curve.
JoAnn H
Attachments
5-concubinesweb-jpg
5-concubinesweb-jpg (999 Bytes) Viewed 3408 times
tainan-koxinga-park-dragon-jpg-lab-acv
(999 Bytes) Not downloaded yet
capture_5-concubines-curve-web-jpg
capture_5-concubines-curve-web-jpg (999 Bytes) Viewed 3408 times

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Mon Nov 09, 2009 6:26 pm

Not too bad...the sky needs a bit of help...it's almost magenta in the hue clocks I tried...
See if you can add some blue without messing up the rest....

Greg

joann
Posts: 184
Joined: Sat Nov 22, 2008 11:19 pm

Postby joann » Tue Nov 10, 2009 12:14 am

Greg, I give up on getting more blue in the sky. I tried many things, I put a K mask on it and tried it in HSB I thought I could get some blue there. Blue in other parts of the image got more blue but the sky did not.
I tried RGB that didn't work.
I tried LAB that didn't work.
At least for me. I guess I just don't know how to do it.
HELP!
JoAnn H




Not too bad...the sky needs a bit of help...it's almost magenta in the hue clocks I tried...
See if you can add some blue without messing up the rest....

Greg

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Tue Nov 10, 2009 2:34 am

try a b channel mask that looks something like this...
I added a light blur to the mask.  Apply to the layer...
Open the image in CM.
Then add a sky pin to the image on the mask layer and fade the opacity slider to about 65%

See if it gets better...
Greg

joann
Posts: 184
Joined: Sat Nov 22, 2008 11:19 pm

Postby joann » Tue Nov 10, 2009 4:14 am

OK thanks. I'll give it a try.
JoAnn H


try a b channel mask that looks something like this...
I added a light blur to the mask.  Apply to the layer...
Open the image in CM.
Then add a sky pin to the image on the mask layer and fade the opacity slider to about 65%

See if it gets better...
Greg

joann
Posts: 184
Joined: Sat Nov 22, 2008 11:19 pm

Postby joann » Tue Nov 10, 2009 9:54 pm


Greg, I've worked on this all day and getting nowhere.
when you say try a b channel mask that looks something like this.... can you give me a screen shot?
I put a b mask on it. Then inverted it. copied it
cancelled out of CM and now I'm in PS...Do I want to add an adjustment layer? I made a hue & sat. adjustment layer copied the mask to it. Don't know what to do next.
I need more specific instructions. I'm sorry I'm not getting this.
JoAnn H


OK thanks. I'll give it a try.
JoAnn H


try a b channel mask that looks something like this...
I added a light blur to the mask.  Apply to the layer...
Open the image in CM.
Then add a sky pin to the image on the mask layer and fade the opacity slider to about 65%

See if it gets better...
Greg


ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Nov 11, 2009 1:18 am

Hey Joann,
No problems...

Start over and go at it this way....

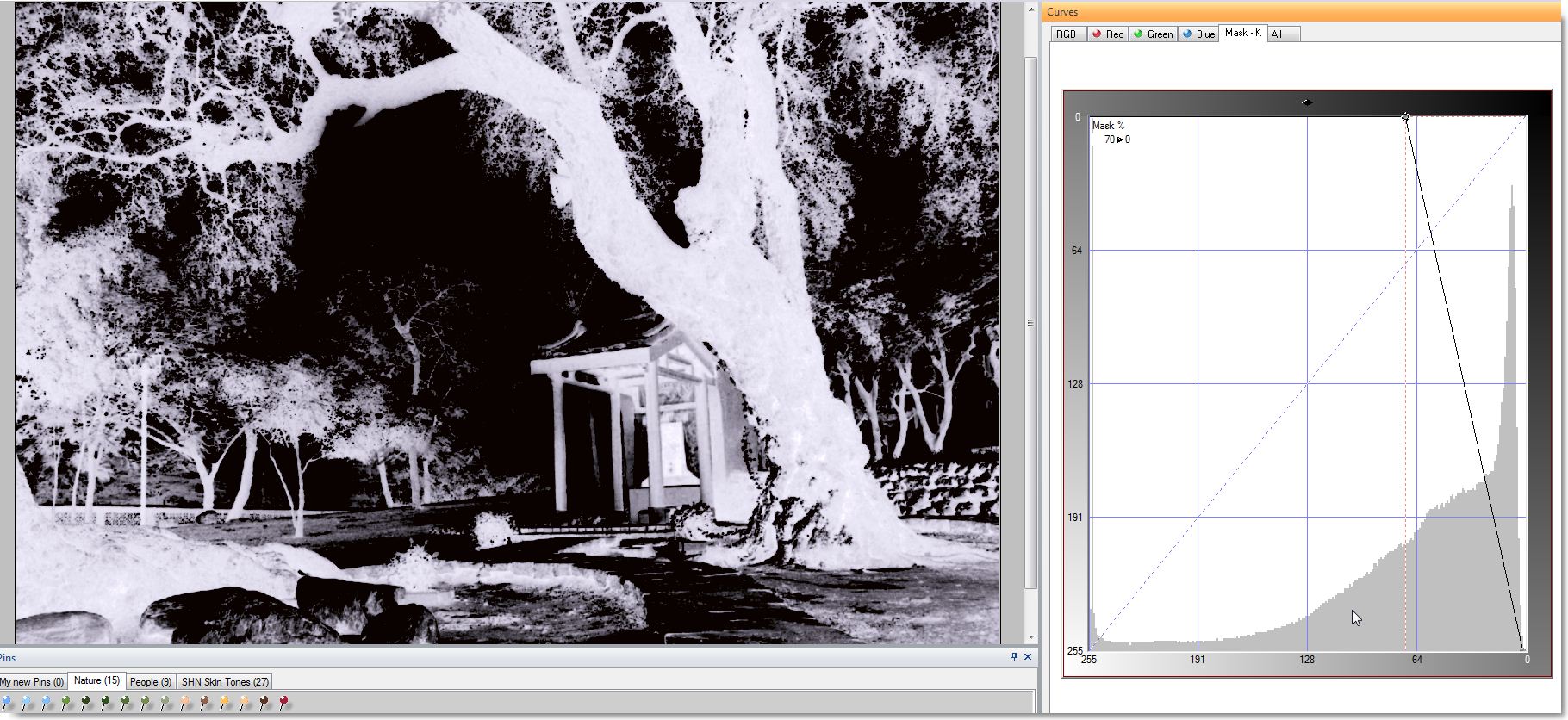

1) copy background and set the layer mode to screen.

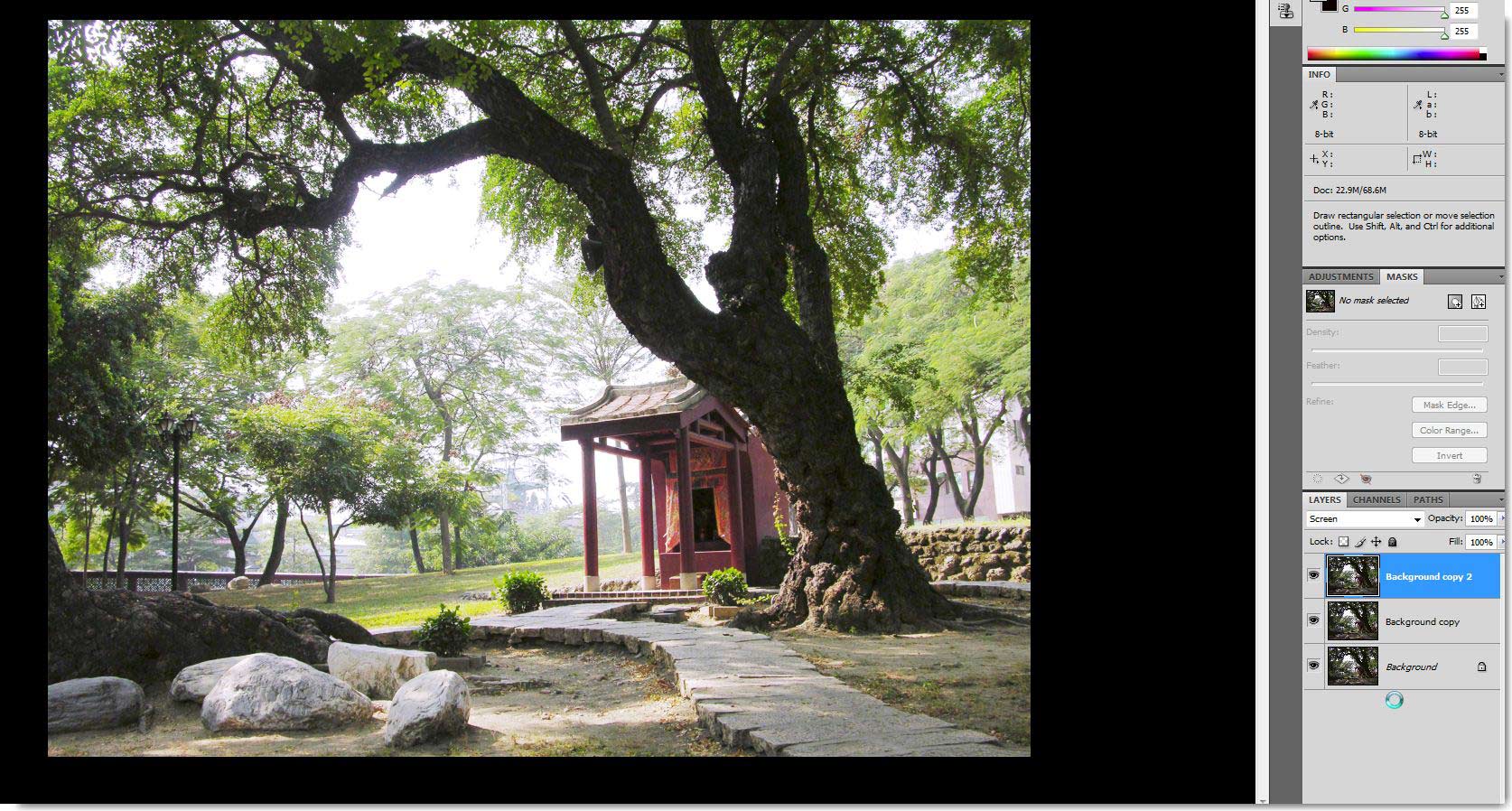

2) copy the screen layer so you have 2 screen layers like shown in shot1.

3) Select the background layer and open CM.

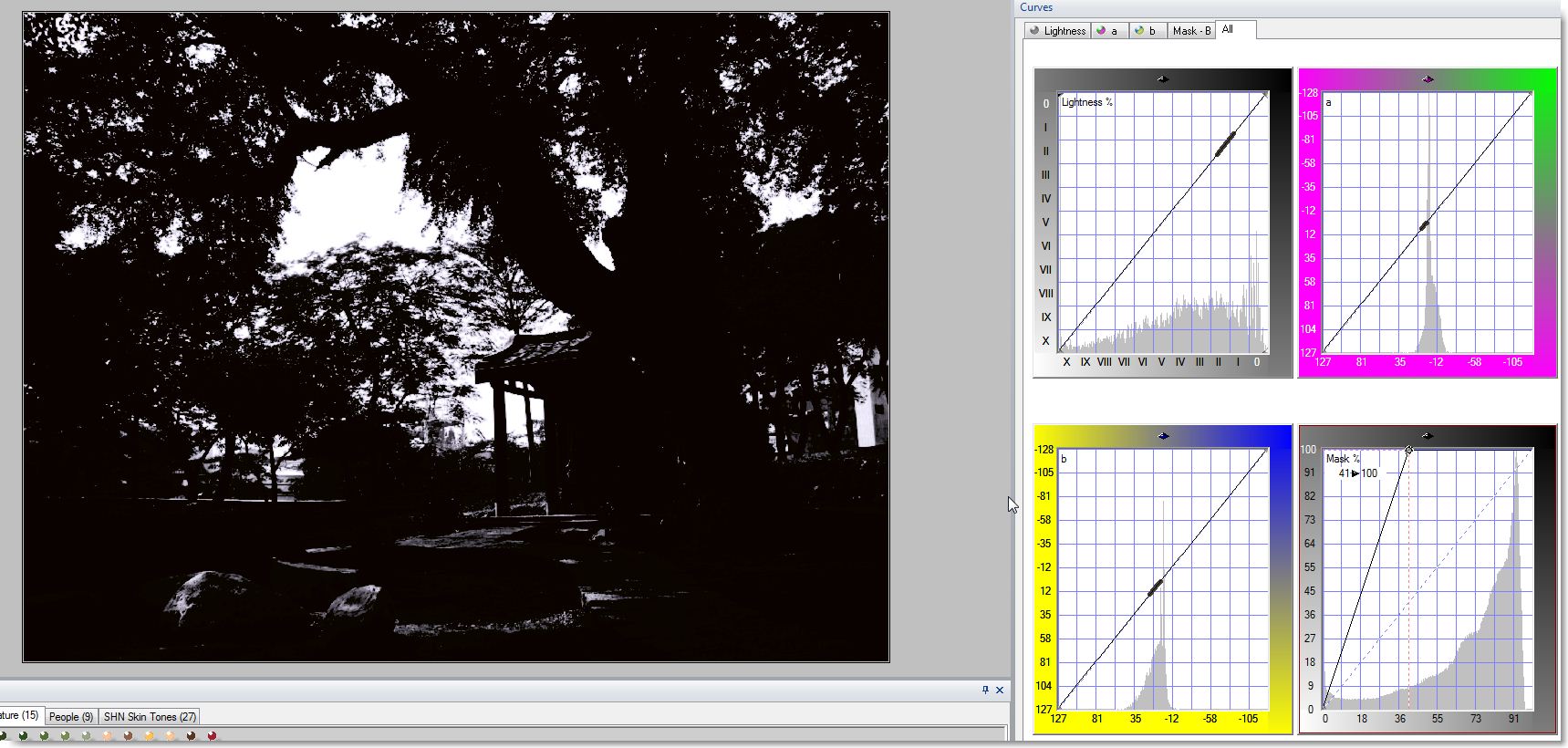

4) Select the L channel for a mask.  Adjust as shown in shot2.  Select a light blur.

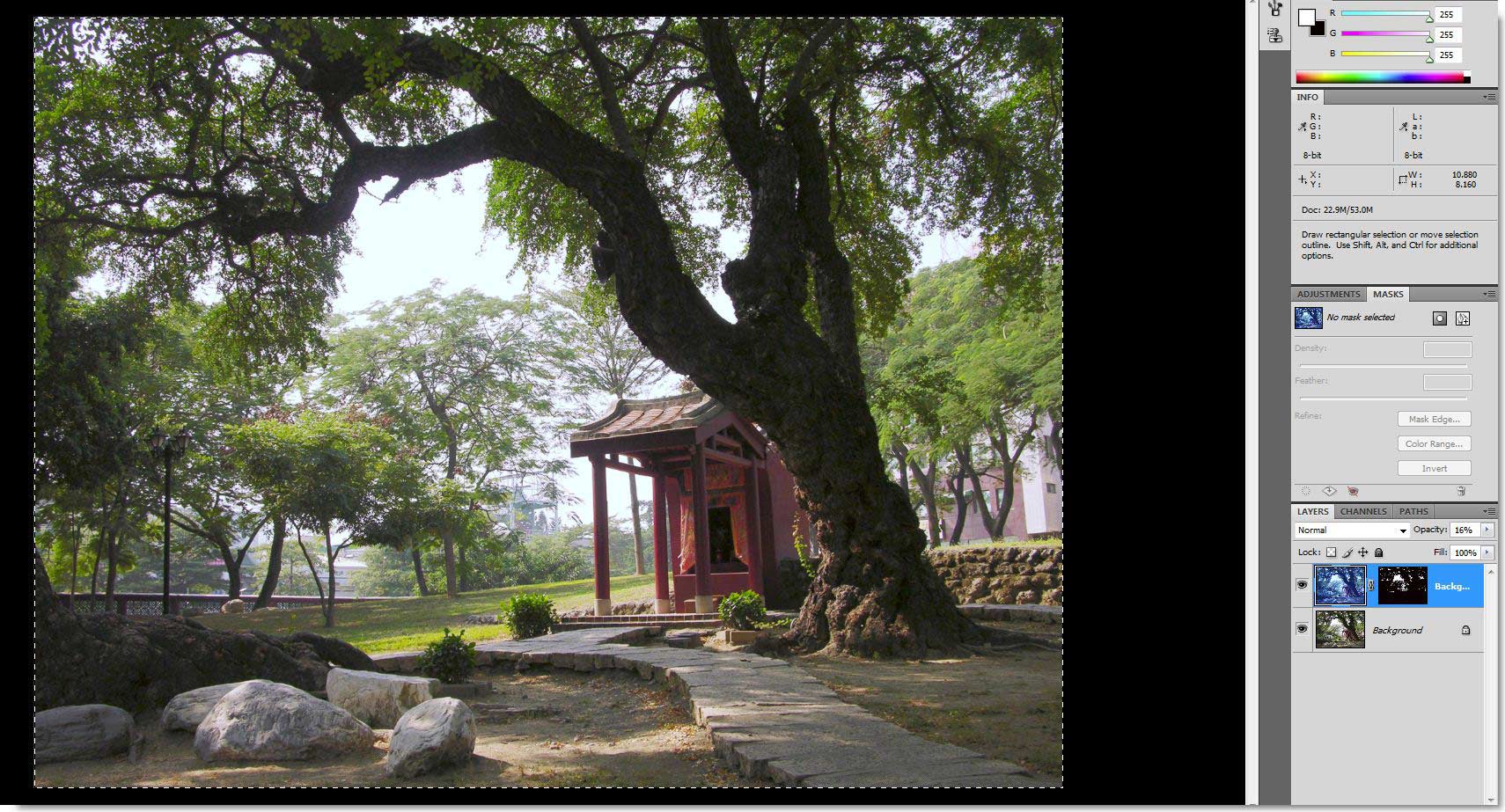

5) Apply the mask to the top layer of your image.  This will lighten the dark shadows without blowing out the trees.  Shot3
6) Flatten your image.

See next posting....
Greg
Attachments
screenshot001-jpg-104
screenshot001-jpg-104 (287.43 KiB) Viewed 3408 times
screenshot002-jpg-77
screenshot002-jpg-77 (299.09 KiB) Viewed 3408 times
screenshot003-jpg-42
screenshot003-jpg-42 (280.06 KiB) Viewed 3408 times

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Nov 11, 2009 1:44 am

1) set a reasonable neutral. Shot4
2) Apply settings and close CM.
3) Make a copy of the background layer
4) Open CM and create a B channel mask as shown in shot5.
5) Paste the mask into the background copy layer.
6) The image on the layer and apply a sky pin to an open area of sky. Apply and close CM
7) Set opacity to 16% or so...Shot7.

Flatten image.

8) open in CM for the last time and adjust the color saturation in LAB with the slider and MFM K channel mask as needed.

Greg
Attachments
screenshot004-jpg-24
screenshot004-jpg-24 (129.69 KiB) Viewed 3408 times
screenshot005-jpg-17
screenshot005-jpg-17 (245.04 KiB) Viewed 3408 times
screenshot007-jpg-10
screenshot007-jpg-10 (291.25 KiB) Viewed 3408 times

joann
Posts: 184
Joined: Sat Nov 22, 2008 11:19 pm

Postby joann » Wed Nov 11, 2009 4:36 pm

I worked on this a while last night and started over this morning. I had pretty good results EXCEPT the purple fringe on the branch at the top left and leaves. I got the magenta/blue out but then the curtains were pretty faded. I'm satified that I know how to do this photo and am going to move on. BUT....I can't...until I know how to get rid of the purple fringe. I even took it into PSE where there is a purple fringe removal tool and that didn't even get rid of it.
Thanks for all your help.
#1 image is before I noticed the purple fringe.
#2 image I've taken out SOME of the purple fringe.
#3 image I made a selection of the fringe area and made an adjustment layer in PS, Hue & Sat. Took out the offending fringe. However, now there is no green in the leaves.

BTW..the problem I was having with the mask...I was trying to use b mask instead of B mask. Duh!

JoAnn H





1) set a reasonable neutral. Shot4
2) Apply settings and close CM.
3) Make a copy of the background layer
4) Open CM and create a B channel mask as shown in shot5.
5) Paste the mask into the background copy layer.
6) The image on the layer and apply a sky pin to an open area of sky. Apply and close CM
7) Set opacity to 16% or so...Shot7.

Flatten image.

8) open in CM for the last time and adjust the color saturation in LAB with the slider and MFM K channel mask as needed.

Greg
Attachments
newconcubine-temple-web-jpg
newconcubine-temple-web-jpg (202.67 KiB) Viewed 3408 times
concubinepurple-fringe-lessweb-jpg
concubinepurple-fringe-lessweb-jpg (207.15 KiB) Viewed 3408 times
3rdconcubine-temple-web-jpg
3rdconcubine-temple-web-jpg (201.88 KiB) Viewed 3408 times

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Thu Nov 12, 2009 12:50 am

Wow you pushed the color in this one...

I like that you have sorted out the channel problem...If you still have a layers version of the screen masks you could set the first screen layer to 50% and redo the copy  that might make the highlights a bit more manageable...

Greg
