Kiss a frog ,see what happens

This is the forum for posting to the June 2010 CM 101 Class
mikemeister_admin
Posts: 4927
Joined: Fri Sep 20, 2013 8:29 pm

Postby mikemeister_admin » Wed Jun 09, 2010 1:45 pm

A picture ,by a friend ,that could use a bit of help.GregM
Attachments
cmfrog-jpg
cmfrog-jpg (999 Bytes) Viewed 2161 times

Chris Nicola
Posts: 11
Joined: Thu Jun 03, 2010 8:05 pm

Postby Chris Nicola » Wed Jun 09, 2010 3:53 pm

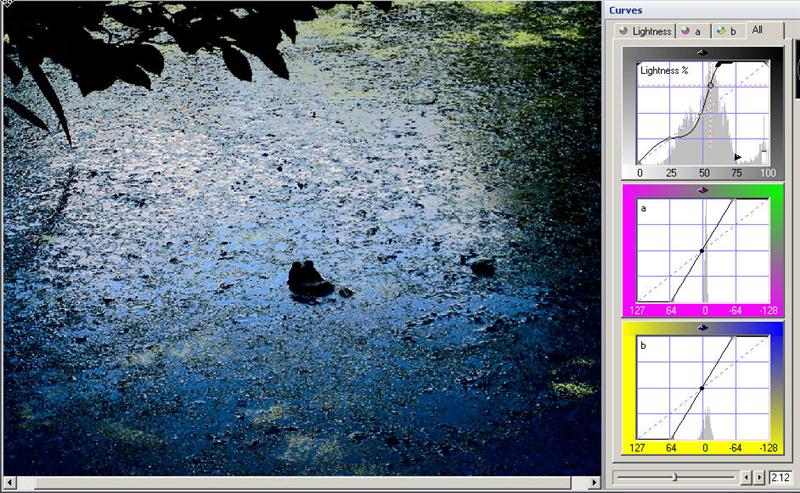

I found this picture an interesing challenge. At first I thought it was a nearly imposible task to make it look graphicaly interesting. I am now starting to appreciate the great power of curves. I decided to tweak in lab colour to increase the contrast and darken the shadows around the edges to get a vignetting effect and boost the satuation to get a surreal look with the sky showing in the water. I'm having great fun

Kind Regards

Chris Nicola

Guest for the week
Attachments
cmfrog_chris-takea2-jpg
cmfrog_chris-takea2-jpg (999 Bytes) Viewed 2161 times
cmfrog_chris-takescreenshot-medium-jpg
cmfrog_chris-takescreenshot-medium-jpg (999 Bytes) Viewed 2161 times

leeharper_admin
Posts: 263
Joined: Tue Aug 20, 2013 2:39 pm

Postby leeharper_admin » Wed Jun 09, 2010 4:04 pm

Wow - this one's tricky!

The frog is very close to neutral in the original, and the leaves at top-left lack definition. I've managed to get more detail into the leaves, and my frog is a better colour. I found it hard to decide what to do with the water and algae. I've tweaked the colour of both a bit, and pushed the saturation a little.

Here's what I did:



  • To get some colour into the frog, I applied Channel Mixer to the Green channel - R: 0, G: +130, B: -30

  • Then in preparation for my next move, I applied an Exposure adjustment (Image > Adjustments > Exposure...), moving the 'Gamma Correction' slider to 3.00

  • I then changed the image mode to Lab. Duplicated the background layer, and set the duplicate layer to the Multiply blend mode.

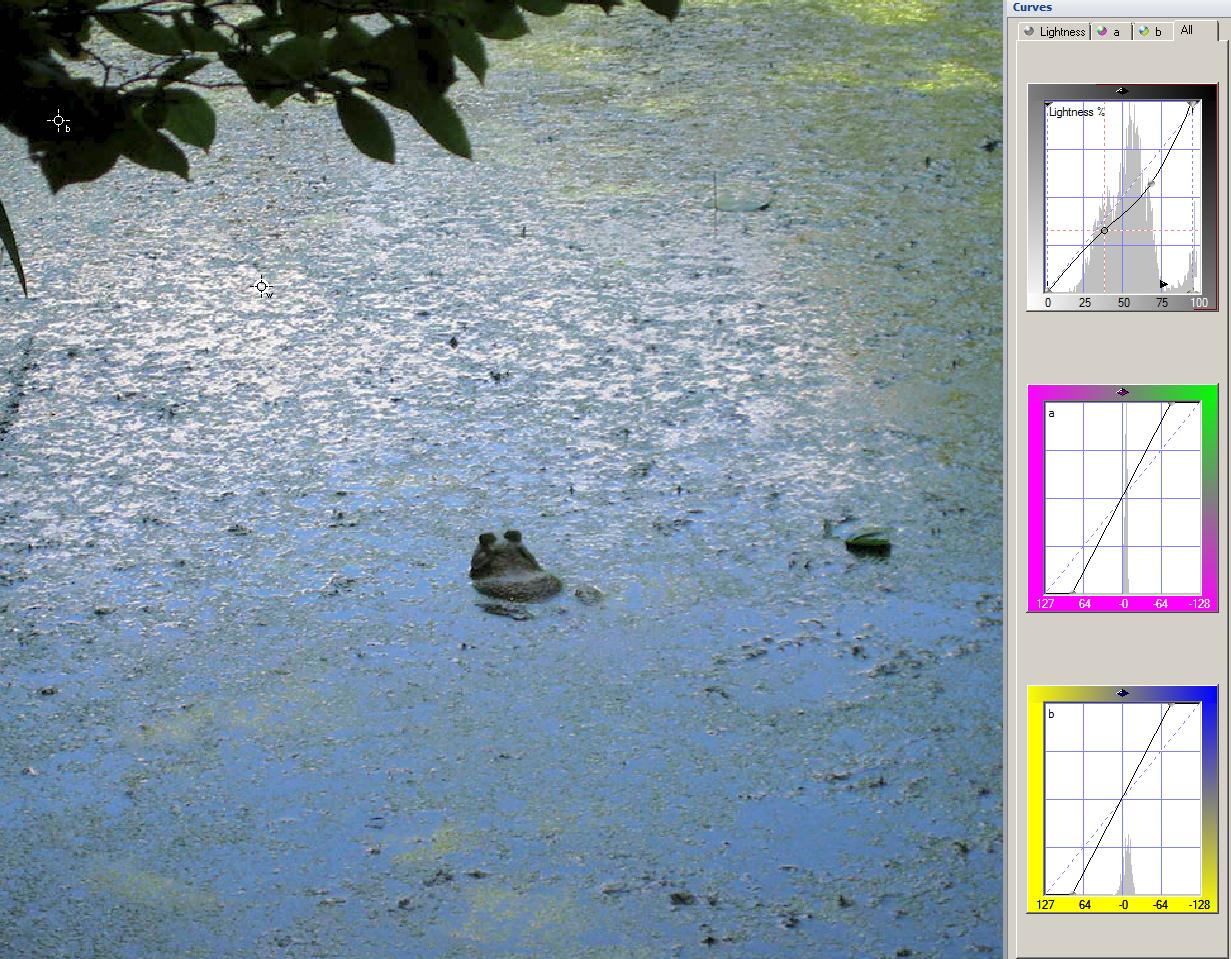

  • Now into CurveMeister, and into Lab curves. I set highlight and shadow points, and made slight colour adjustments.

  • Again in CurveMeister, into RGB today. Small adjustments to make the frog a little browner in places, and to make the algae look more interesting.*

  • A slight 'Shadow/Highlight...' adjustment - Shadows: 18/25/30 Highlights: 6/26/30

  • I finished by resizing the image, and applying a touch of sharpening.




*Both curve files are attached.

I wanted to make the image evoke a Monet painting, without overdoing it...

Lee.
Attachments
cmfrog_lh-jpg
cmfrog_lh-jpg (999 Bytes) Viewed 2161 times
frog-lab-acv
(82 Bytes) Downloaded 62 times
frog-rgb-acv
(86 Bytes) Downloaded 63 times

mikemeister_admin
Posts: 4927
Joined: Fri Sep 20, 2013 8:29 pm

Postby mikemeister_admin » Wed Jun 09, 2010 4:08 pm

Yes,I was going to call this "Show me the Monet!"GregM

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Jun 09, 2010 4:59 pm

This is so fun to watch...

I have my solution working...but I need to write it up a bit first....
More later today...
Greg

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Jun 09, 2010 5:03 pm


I found this picture an interesing challenge. At first I thought it was a nearly imposible task to make it look graphicaly interesting. I am now starting to appreciate the great power of curves.

I'm having great fun


Chris,
I'm really glad you stuck your nose into the class.  If you know anyone interested on the PSE group site send them over before Sunday...

The "power" of curves is very much what this is about.  There are so many coarse tools in PS and PSE that I no longer even use..."Levels"...Pssft..."Variations"...Pssft....Saturation and brightness...Psssft...

Are curve the answer to everything...NO  but they sure make fast work of some of the most difficult problems..Especially when you know how to combine them with other adjustments and tools.

Keep having fun...please...We love it when that happens...
Greg

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Jun 09, 2010 8:20 pm

Ok...
First....
I applied the shadow highlight adjustment from PS with the highlights and mid tones set to 0 This brought the shadow areas back into someplace where I could work with them.

Here is what I tried to do...I looked over the image and found that the colors; while present did not have enough variation or color contrast.  So I created 2 separate masks from the L channel in CM one for the Greens and one for the Blues.  With each mask I made changes and applied.  To make the blue better I used a contrast pin on the blue channel of RGB.  For the greens I used a combination of the mask and a adjustment to A and B in LAB along with a tweak to the L channel.

So...
Step by Step...

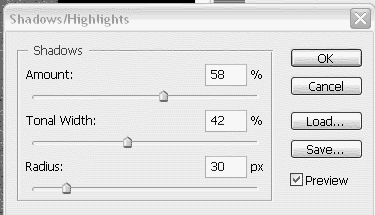

1) Shadow Highlight in PS (Shadow-highlight 1st.jpg)

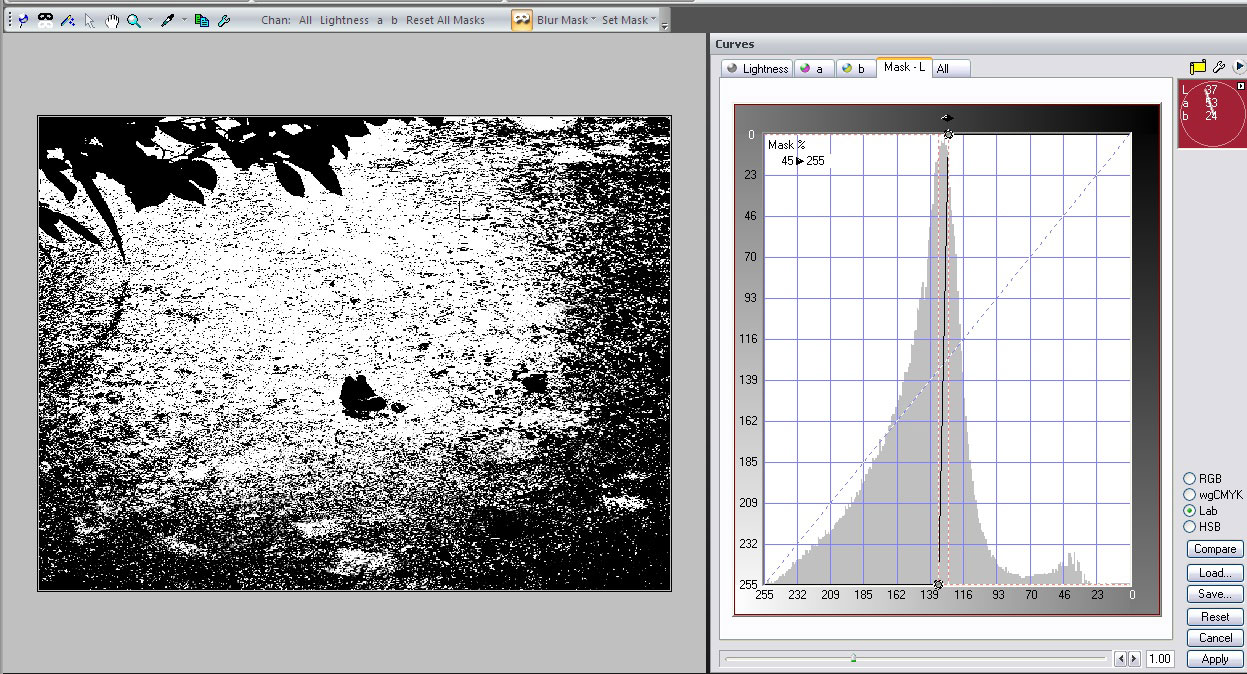

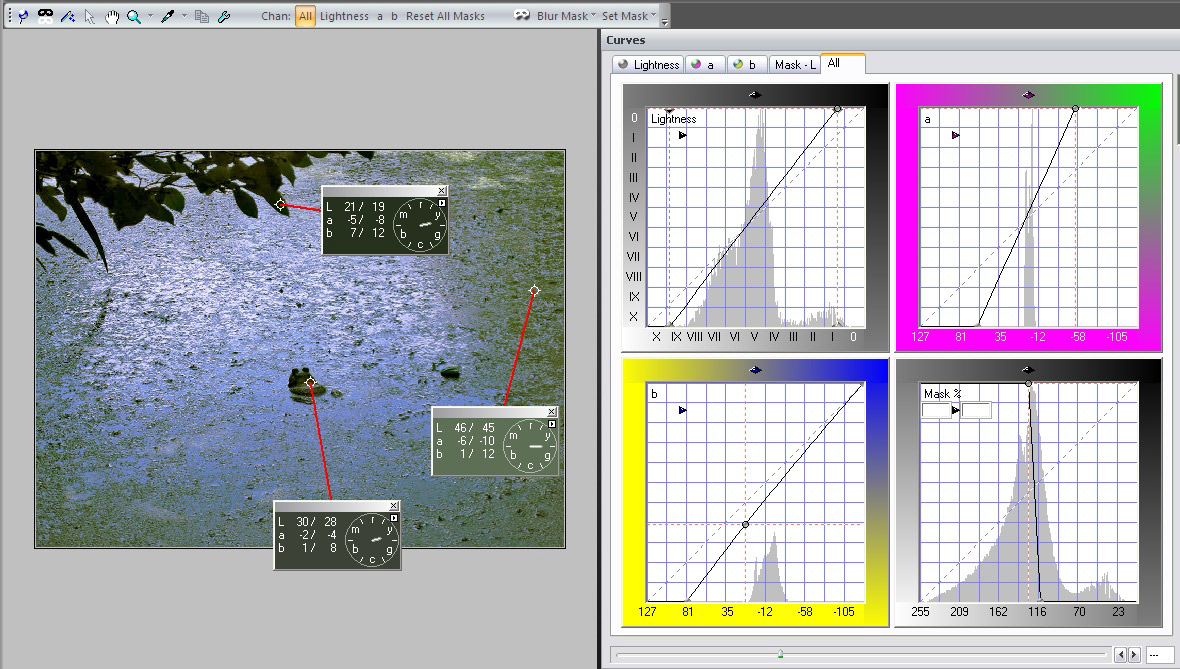

2) L channel mask for the blues in the image. (L channel Mask.jpg)

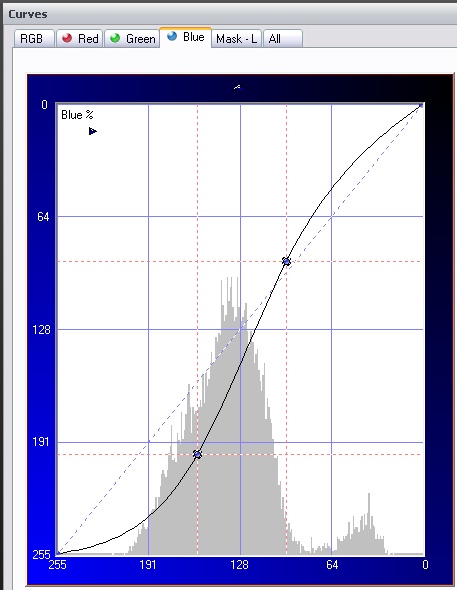

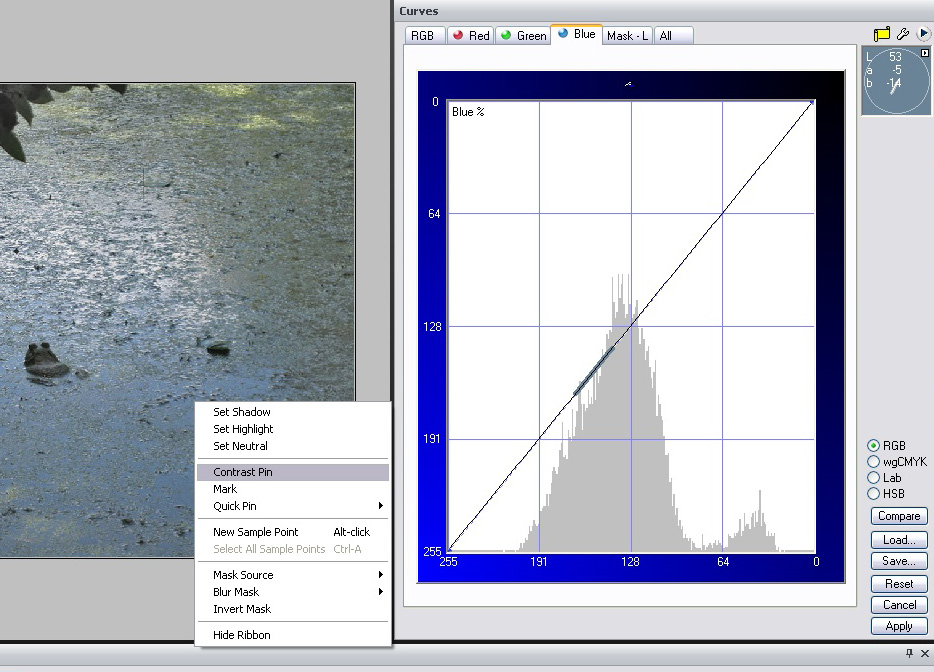

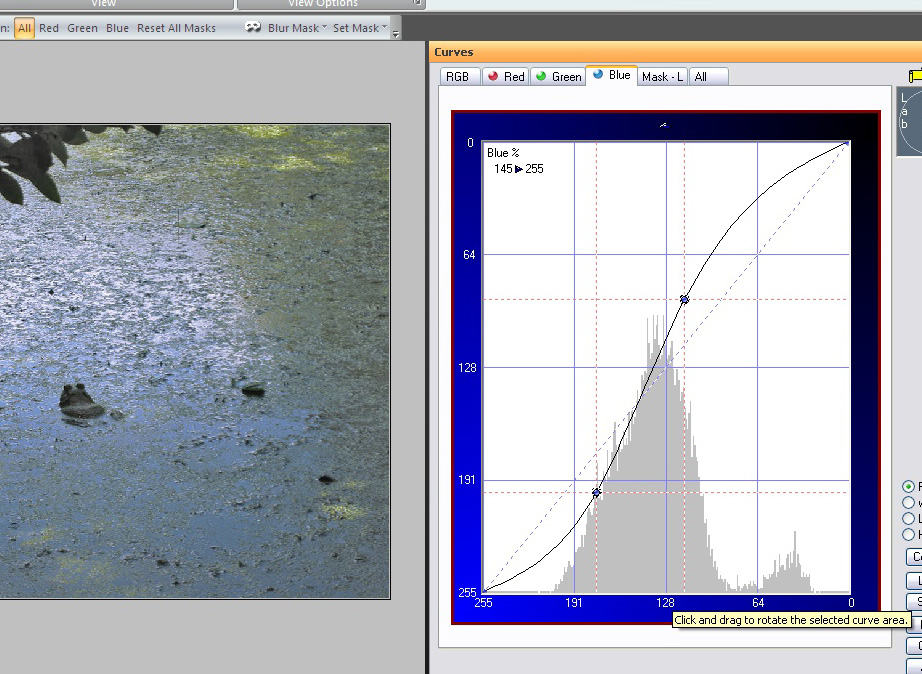

3) Contrast Pin for Blue channel. Three steps.  This brightened the color in the sky and added depth to the reflection.
a.create the contrast pin.
b.adjust the contrast pin.
c.move the entire curve with the arrow keys.
(Contrast Pin 1-3.jpg)

More in the next post.
Greg
Attachments
shadow-highlight-1st-jpg
shadow-highlight-1st-jpg (999 Bytes) Viewed 2161 times
l-channel-mask-jpg
l-channel-mask-jpg (999 Bytes) Viewed 2161 times
contrast-pin-jpg
contrast-pin-jpg (999 Bytes) Viewed 2161 times
contrast-pin2-jpg
contrast-pin2-jpg (999 Bytes) Viewed 2161 times
contrast-pin3-jpg
contrast-pin3-jpg (999 Bytes) Viewed 2161 times

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Jun 09, 2010 11:21 pm

Continued...

4) Apply the first set of curves to the image and then re-open in CM.

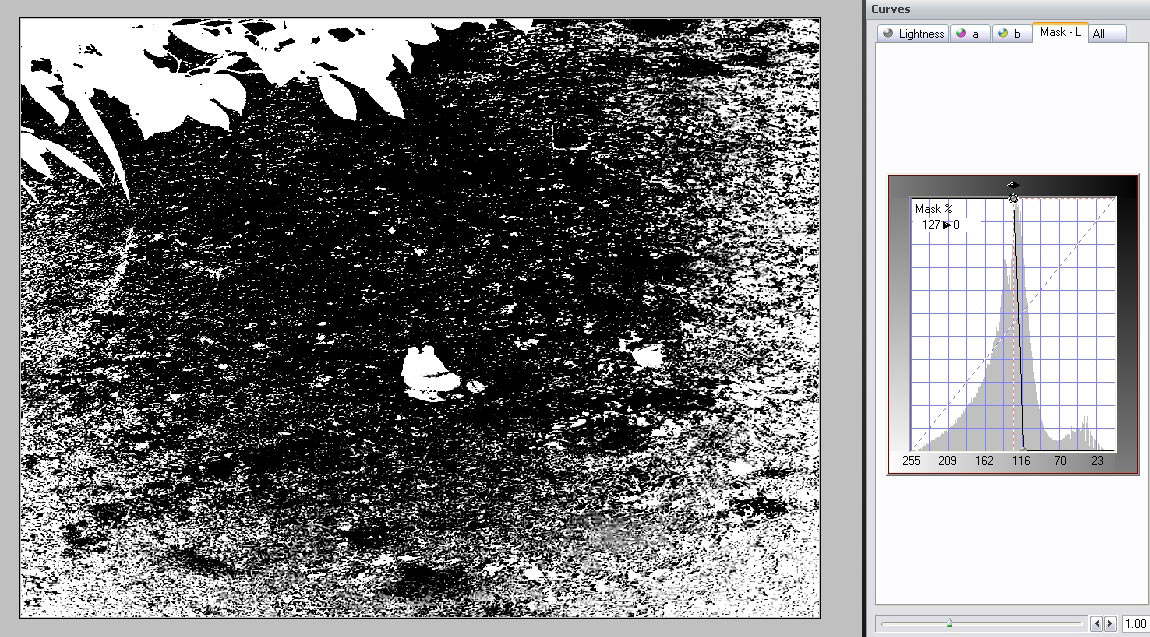

5) Create a new L channel mask and invert it so that the greens are able to be adjusted.

6) In order to get the green I wanted I had to adjust the end points of both the A and B curves in LAB.  Then I adjusted the L Channel to enhance the contrast for just the green.  I chose this method rather than fight with the curves to get the green I wanted.  Everything else I did caused the green to be too cyan.

7) Final Image

Greg
Attachments
l-channel-mask-2-jpg
l-channel-mask-2-jpg (999 Bytes) Viewed 2161 times
go-greeen-jpg
go-greeen-jpg (999 Bytes) Viewed 2161 times
cmfrog_gg-jpg
cmfrog_gg-jpg (999 Bytes) Viewed 2161 times

ggroess
Posts: 5342
Joined: Wed May 24, 2006 2:15 am
Contact:

Postby ggroess » Wed Jun 09, 2010 11:22 pm

Upon further review and cropping...

Greg
Attachments
cmfrog_gg_cropped-jpg
cmfrog_gg_cropped-jpg (999 Bytes) Viewed 2161 times

imported_BoydMac
Posts: 25
Joined: Sat Jan 10, 2009 3:19 am

Postby imported_BoydMac » Thu Jun 10, 2010 4:02 am

I just set dark and light points and the adjusted the lightness curve to try and increase the contrast in the region of the frog and then boosted the saturation.  BoydMac
Attachments
cm101-session-1-jcmfrog-adj-with-curves-jpg
cm101-session-1-jcmfrog-adj-with-curves-jpg (999 Bytes) Viewed 2161 times
